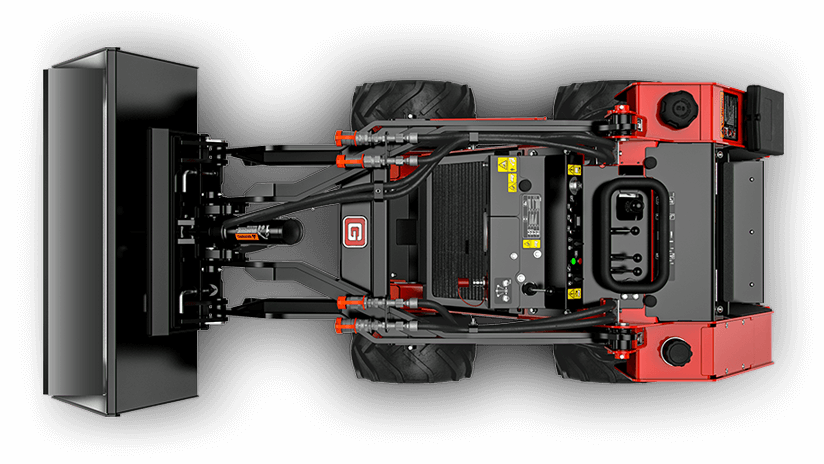

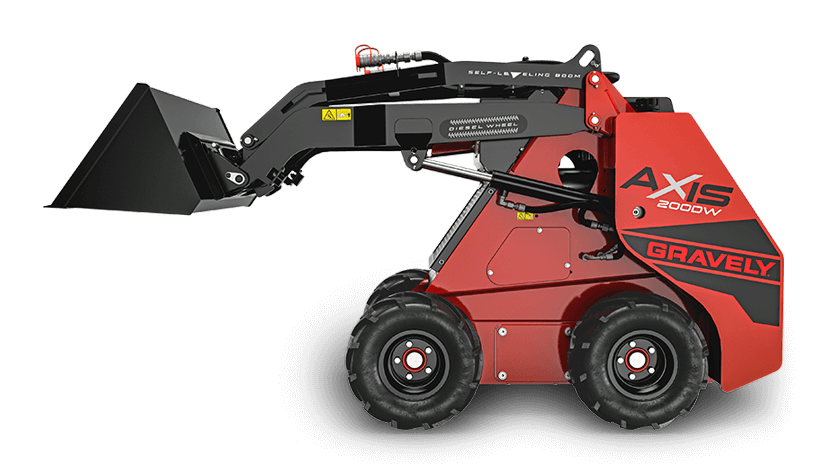

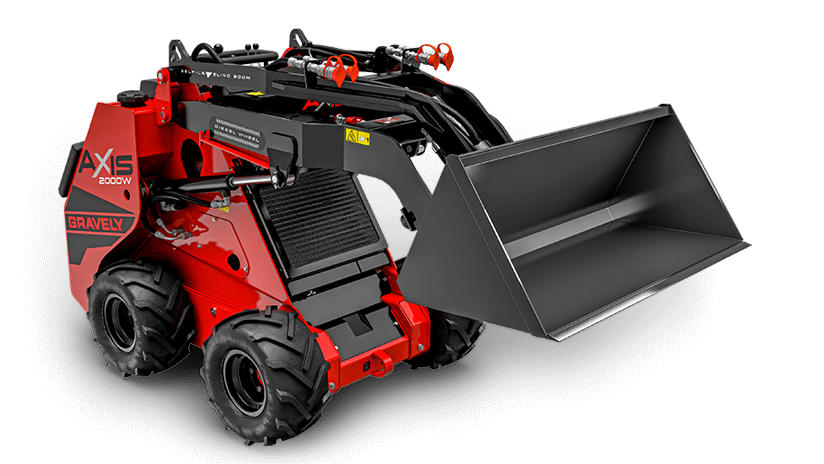

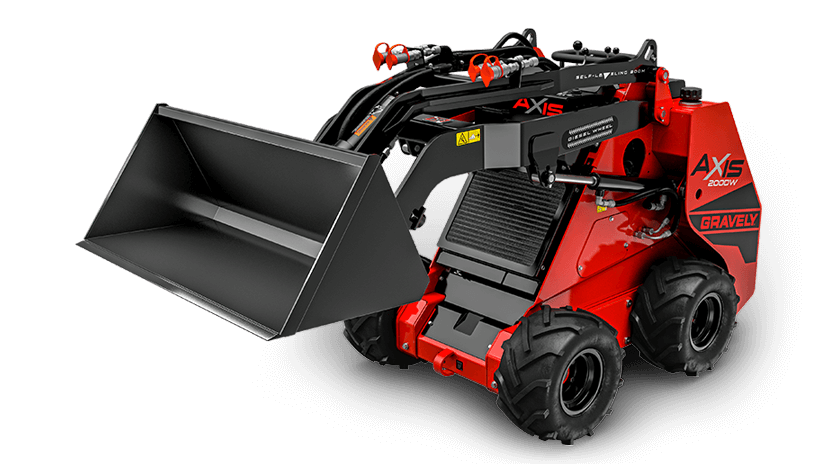

Gravely AXIS® 200DW

Contact us for price

Stock status: Call Store for Availability

This 2,100lb wheeled multi-tool machine is powered by a durable Kubota D1105 25 HP diesel engine, running at a top speed of 3.2 MPH. With an overall operating height of 84in, the AXIS 200DW has the ability to dump at a height of 47.8in while at a 45-degree angle. The 631lbs of lifting capacity with a tipping capacity of 1,262lbs, allows this compact utility loader to maximize your crew’s time in the field when you need to get the job done and not break up the ground you’re working on.
Call Us Now

Specs

AXIS® 200DW

Model Number950012
Power Train
EngineKubota® D1105-E4B
Horsepower25
Fuel Capacity10 gal / 37.9 ltr
Driver PositionStand
Ground Speed Forward3.2 mph / 5.1 kph
Wheels Front18.0 x 8.5 in - 8.0 in (45.7 x 21.6 cm - 20.3 cm)
Wheels Rear18.0 x 8.5 in - 8.0 in (45.7 x 21.6 cm - 20.3 cm)
Payload
Tipping Capacity1262 lbs / 572.3 kg
Max Lift Capacity631 lbs / 286.2 kg
Dimensions
Weight (assembled)2125 lb / 963.7 kg
Length63.3 in / 160.8 cm
Width41 in / 104.1 cm
