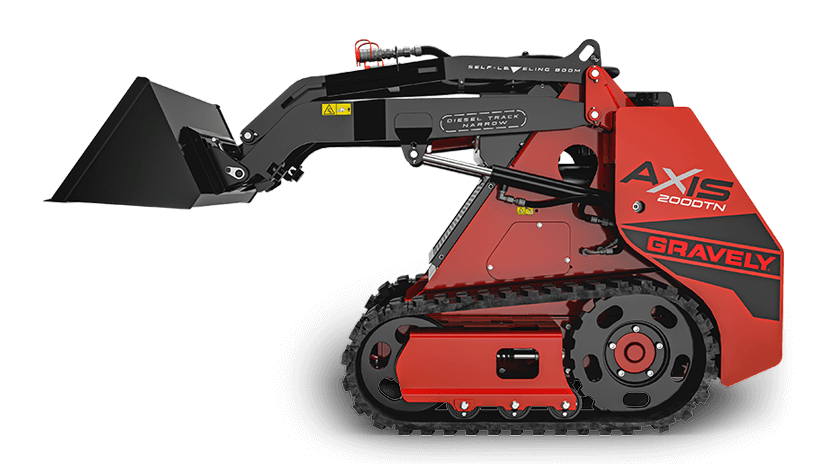

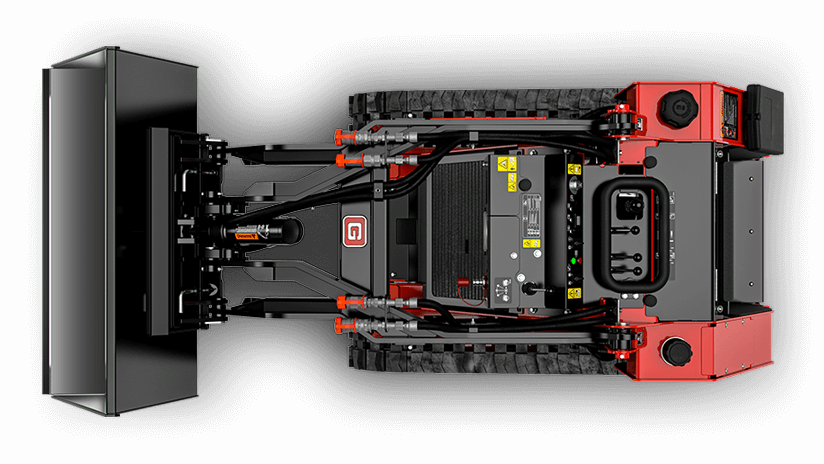

Gravely AXIS® 200DTN

Contact us for price

Stock status: Call Store for Availability

This 2,600lb narrow-tracked multi-tool machine is powered by a durable Kubota D1105 25 HP diesel engine, running at a top speed of 3.5 MPH. With an overall operating height of 85in, the AXIS 200DTN has the ability to dump at a height of 48.8in while at a 45-degree angle. The 489lbs of lifting capacity with a tipping capacity of 1,397lbs, allows this compact utility loader to maximize your crew’s time in the field when you have a large job to do in a narrow work area.
Call Us Now



Model Number950011
Power Train
EngineKubota® D1105-E4B
Fuel Capacity10 gal / 37.9 ltr
Driver PositionStand
Ground Speed Forward3.5 mph / 5.6 kph
Wheels Rear0 x 7.1 in - 0 in (0 x 18.0 cm - 0 cm)
Front Wheel Track7.1 in
Rear Wheel Track7.1 in / 18 cm
Tipping Capacity1420 lbs / 3131.1 kg
Max Lift Capacity497 lbs / 1095.9 kg
Weight (assembled)2465 lb
Length63.3 in / 160.8 cm
Width35.6 in / 90.4 cm
