Gravely AXIS® 200DT

Contact us for price

Stock status: Call Store for Availability

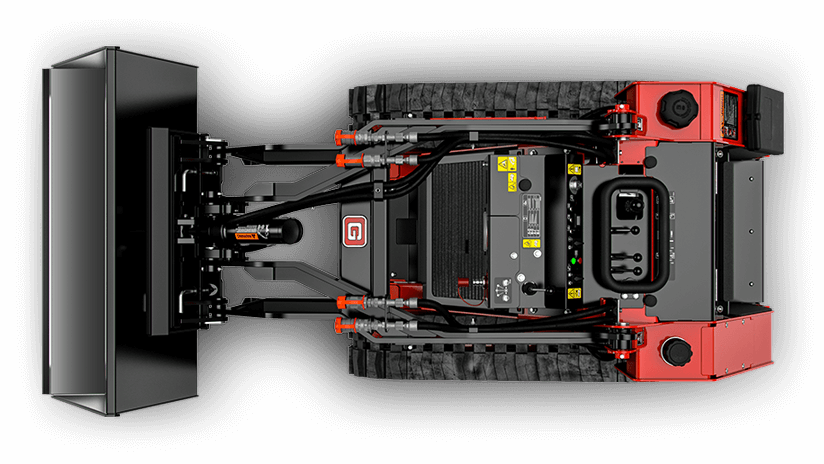

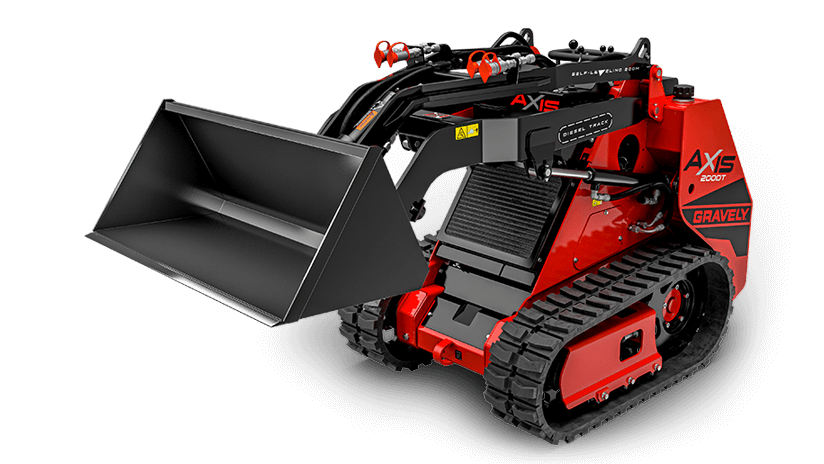

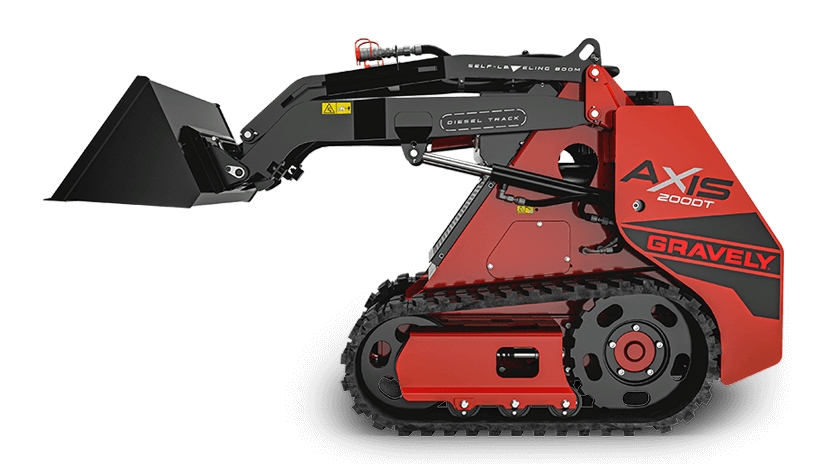

This 2,500lb track model multi-tool machine is powered by a durable Kubota D1105 25 HP diesel engine, running at a top speed of 3.5 MPH. With an overall operating height of 85in, the AXIS 200DT has the ability to dump at a height of 48.8in while at a 45-degree angle. The 497lbs of lifting capacity with a tipping capacity of 1,420lbs, allows this compact utility loader to maximize your crew’s time in the field when you want to get the job done efficiently while putting the power where you need it.
Call Us Now



Model Number950010
Power Train
EngineKubota® D1105-E4B
Fuel Capacity10 gal / 37.9 ltr
Driver PositionStand
Ground Speed Forward3.5 mph / 5.6 kph
Front Wheel Track9.1 in
Rear Wheel Track9.1 in / 23.1 cm
Tipping Capacity1397 lbs / 3080.4 kg
Max Lift Capacity489 lbs / 1078.2 kg
Weight (assembled)2525 lb
Length63.3 in / 160.8 cm
Width41.2 in / 104.6 cm
