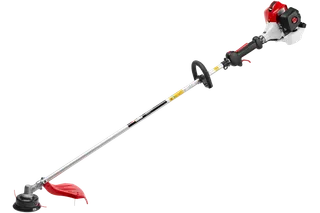

RedMax TRZ230S

Contact us for price

Stock status: Call Store for Availability

This RedMax trimmer is a powerful performer for homeowners as well as commercial contractors. The TRZ230S features a 22.5 cc, 0.94 horsepower engine and its light weight makes the trimmer extra portable for landscaping use. A Strato-Charged engine ensures up to 20% better fuel economy than a traditional two-stroke engine while increasing torque and improving emissions. A steel drive shaft with 7-point splined engagement ensures durability and quick acceleration.

Call Us Now

Specs

TRZ230S

Article Number: 967 19 41‑01

Engine
TRZ230S
Article Number: 967 19 41‑01
Cylinder displacement1.37 cu.inch
Clutch engagement speed (±120)4,000 rpm
Electrode gap0.03 in
Fuel consumption450 g/kWh
Fuel tank volume21.64 fl oz
Idling speed3,000 rpm
Maximum rpm output shaft8,208 rpm
Power output0.94 hp
Spark PlugNGK BPMR8Y
Torque, max.1 Nm
Torque, max. at rpm6,500 rpm
Product data
Drive gear angle60 °
Gear ratio1.462
Emission
Exhaust emissions (CO average) CARB495.18 g/kWh
Dimensions
Weight (excl. cutting equipment)10.14 lbs
