Specs

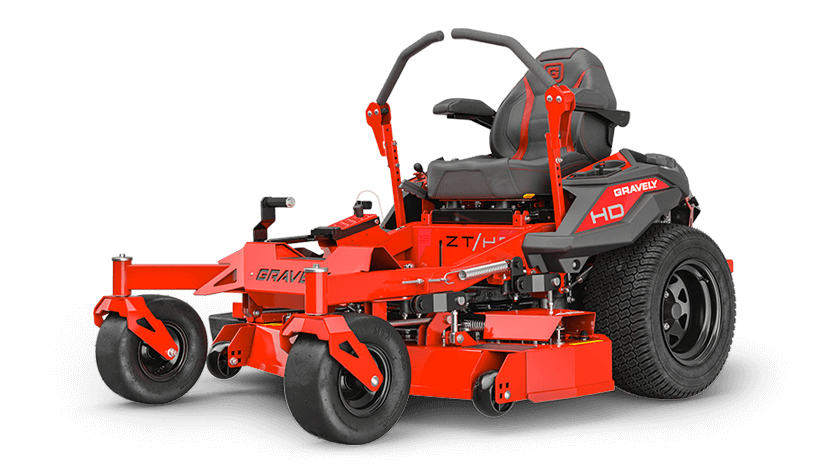

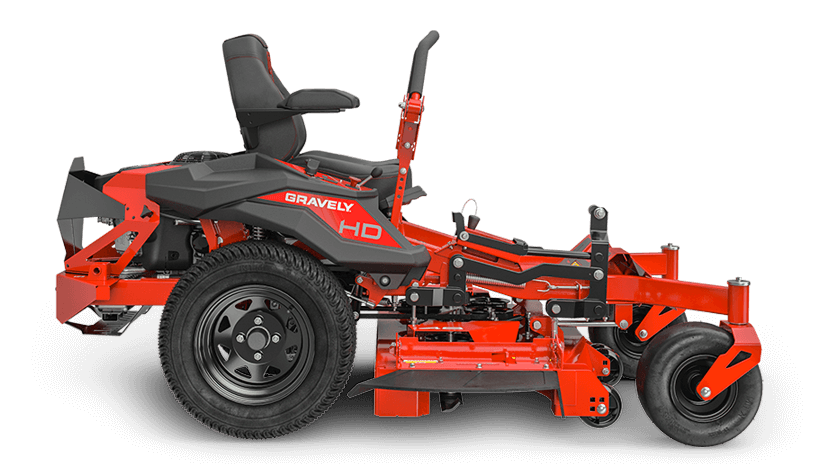

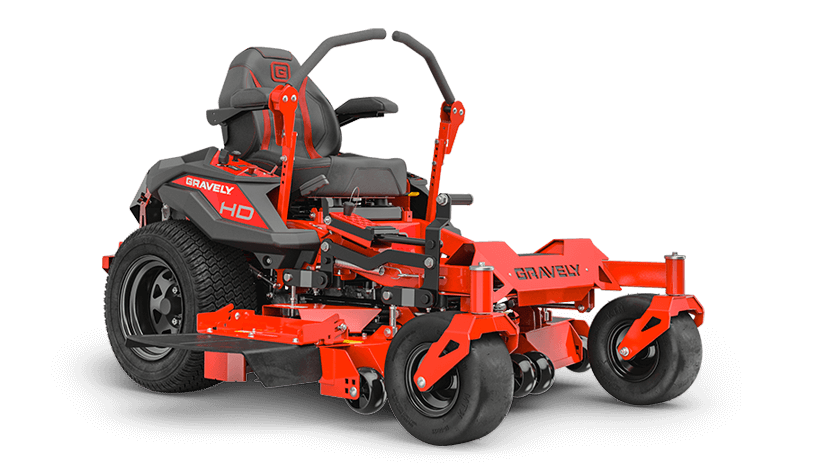

 ZT HD 48 KAWASAKI | |||
|---|---|---|---|
| Model Number | 991269 | ||
| Power Train | |||
| Engine | Kawasaki® FR691V | ||
| Horsepower | 23 | ||
| Engine Displacement | 44.3 in / 726 cc | ||
| Fuel Capacity | 5.1 gal / 19.3 ltr | ||
| Drive System | Hydro-Gear® ZT-3100® Transaxles | ||
| Transmission Type | Hydrostatic | ||
| Brake Type | Lever Activated Parking | ||
| Driver Position | Sit | ||
| Ground Speed Forward | 8 mph / 12.9 kph | ||
| Ground Speed Reverse | 4 mph / 6.4 kph | ||
| Wheels Front | 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm) | ||
| Wheels Rear | 22.0 x 11.0 in - 10.0 in (55.9 x 27.9 cm - 25.4 cm) | ||
| Electric | |||
| Battery Capacity | 190 CCA | ||
| Number of Batteries | 1 | ||
| Battery Voltage | 12 | ||
| Battery Type | AGM | ||
| Battery Size | U1 Compatible | ||
| Deck | |||
| Deck Size | 48 in / 121.9 cm | ||
| Coverage Hour | 3.8 acres / 1.5 hectares | ||
| Spindle Type | Mechanical | ||
| Deck Material | 7 ga | ||
| Deck Construction | Fabricated X-Factor® 3 | ||
| Discharge Configuration | Side | ||
| Cutting Height Min | 1.5 in / 3.8 cm | ||
| Cutting Height Max | 5 in / 12.7 cm | ||
| Cutting Width | 48 in / 121.9 cm | ||
| Dimensions | |||
| Weight (assembled) | 802 lb | ||
| Length | 79 in / 200.7 cm | ||
| Width (Chute Up) | 50.8 in / 129 cm | ||
| Width (Chute Down) | 61.9 in / 157.2 cm | ||
