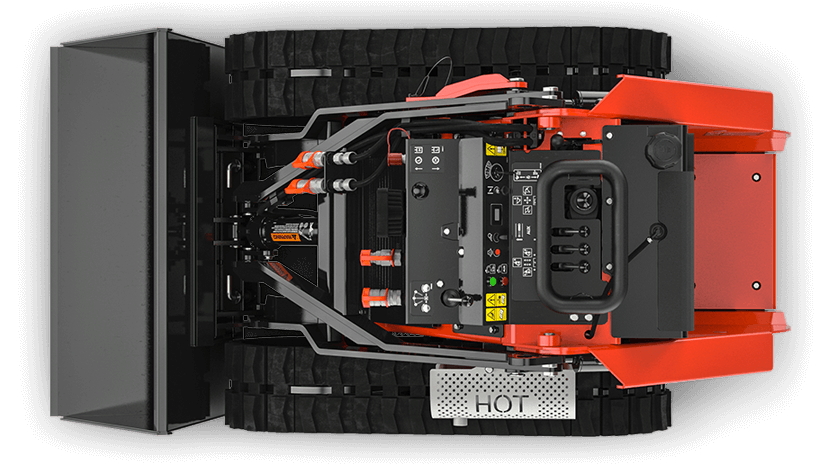

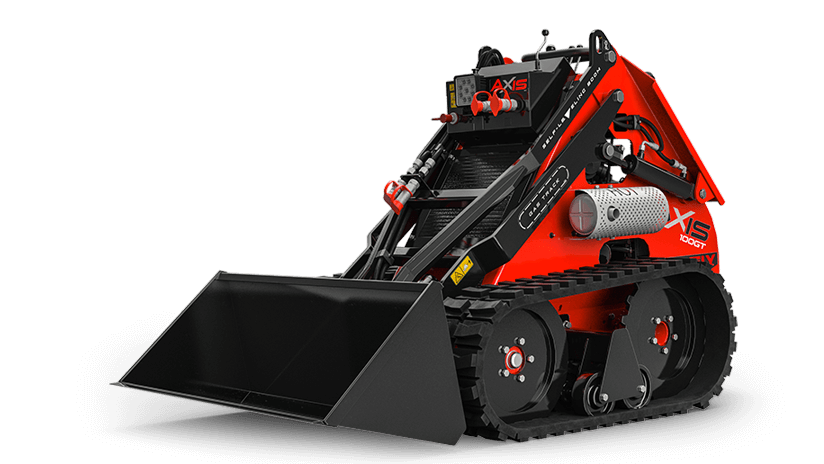

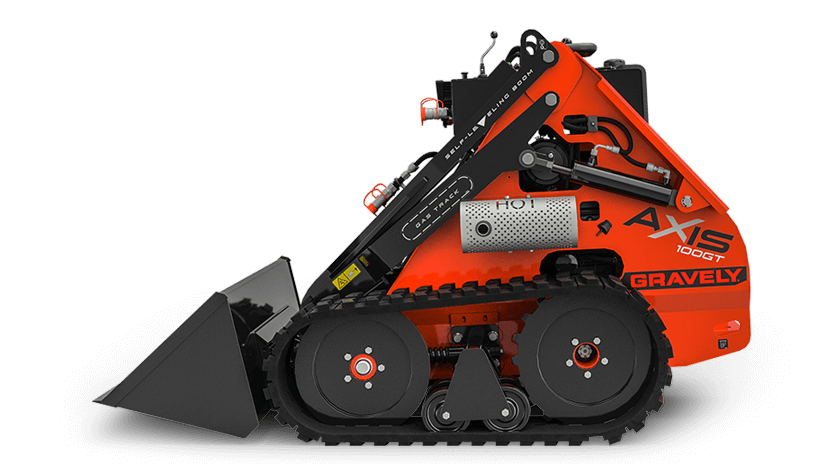

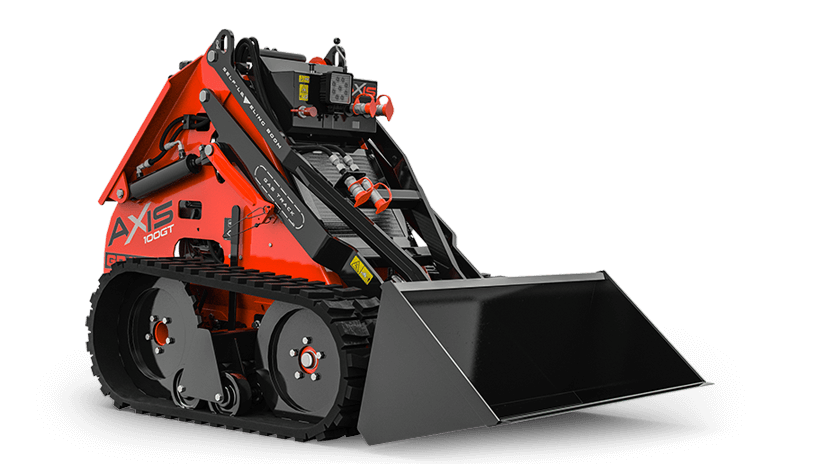

Gravely AXIS® 100GT

Contact us for price

Stock status: Call Store for Availability

The Gravely AXIS, a multi-tool machine that puts a heavy emphasis on “multi.” It performs a ton of jobs but its main one is maximizing a crew’s time in the field. With its list of attachments and capabilities, it’s not a machine that will sit idle. Welcome to the AXIS, where you’re the pivot point to all its power.
Call Us Now

Specs

AXIS® 100GT

Model Number950013
Power Train
EngineKohler® CommandPro CH730
Horsepower23.5
Engine Displacement725 in
Fuel Capacity3 gal / 11.4 ltr
Driver PositionStand
Ground Speed Forward3.2 mph / 5.1 kph
Front Wheel Track42.3 in / 107.4 cm
Rear Wheel Track42.3 in / 107.4 cm
Payload
Tipping Capacity1228 lbs / 556.9 kg
Max Lift Capacity430 lbs / 195 kg
Dimensions
Weight (assembled)2189 lb / 992.7 kg
Length60.5 in / 153.7 cm
