Specs

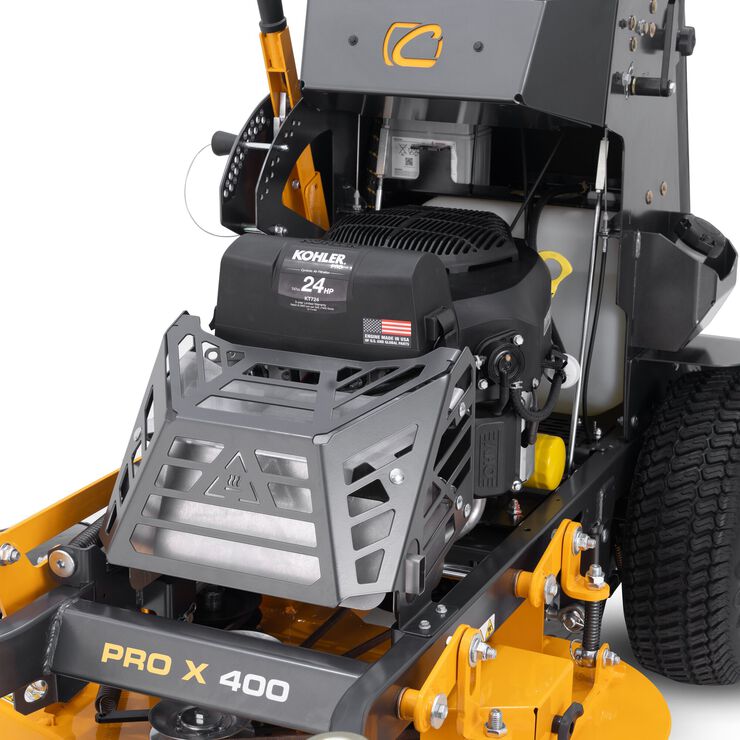

Engine
- Engine Brand Kohler®
- Engine Model 7000 Series PRO
- Engine Model Number KT724
- Engine Displacement 747cc
- Engine Output 24HP
- Starter Type Electronic
- Fuel Tank Capacity 4 gal. US (15.1 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Choke Separate Choke
- Air Filter High Density
- Oil Filter Yes
- Fuel Delivery Carburetor
Drive System
- Transmission Hydro Gear 3100
- Forward Speed 7.0 mph / 11.2 km/h
- Reverse Speed 3.5 mph / 5.6 km/h

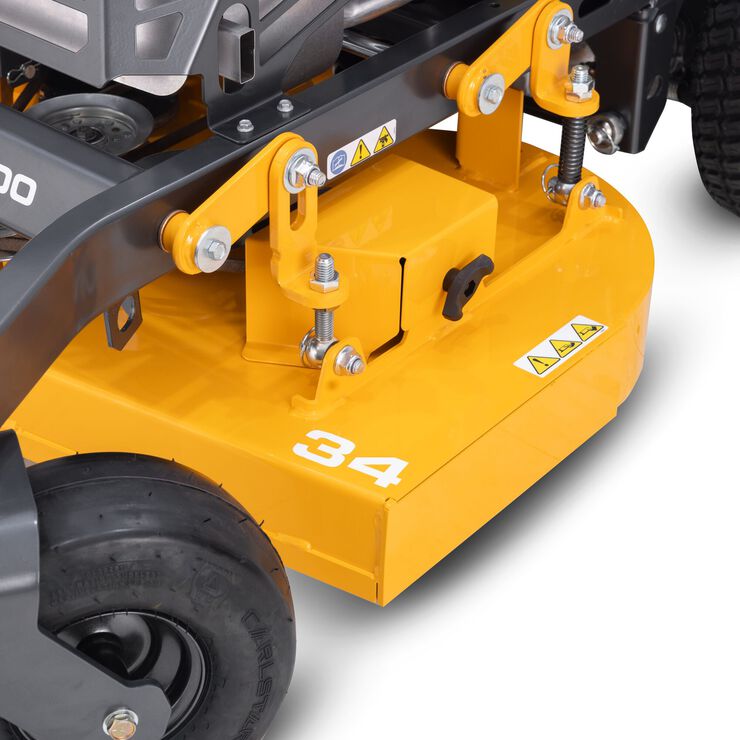

Cutting Deck
- Deck Cutting Width 34 in
- Deck Engagement (PTO) Electric
- Deck Construction 10 ga shell w/ 7 ga top & bottom reinforcement
- Spindle Construction 5” sealed cast aluminum housing (maintenance-free)
- Deck Lift Hand lever adjusting spring lift, pin selector for height
- Cutting Height Range 1.5"- 4.5"
- Anti-Scalping N/A
Chassis
- Frame 1.5" x 3" full-length tube frame
- Front Axle 1.5" x 3" tube construction
- Front Caster Mount 3/8" thick steel
- Suspension None

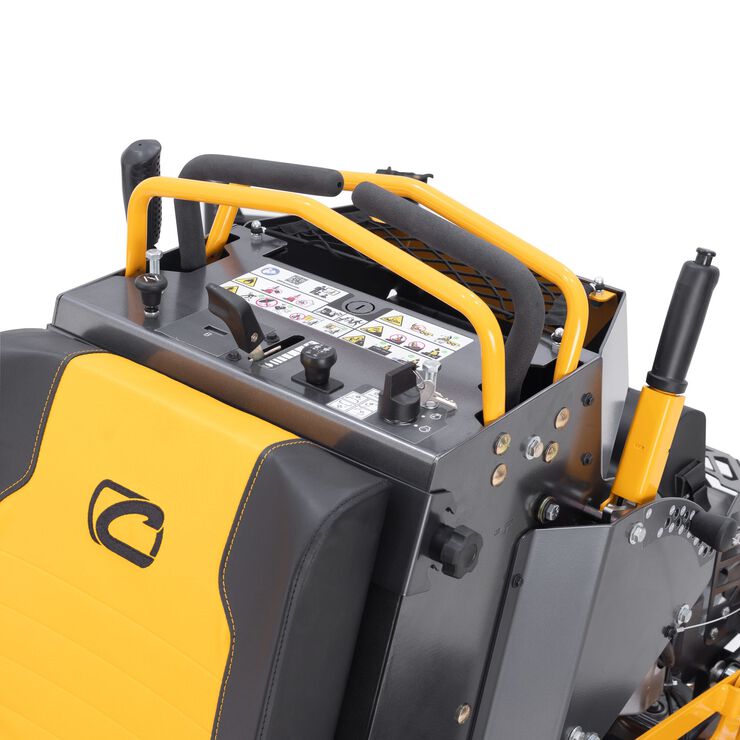

Controls
- Cruise Control NA
- Brakes Hand Lever actuated scrub brake
- Steering Control Lap Bar Steering Control
Wheels

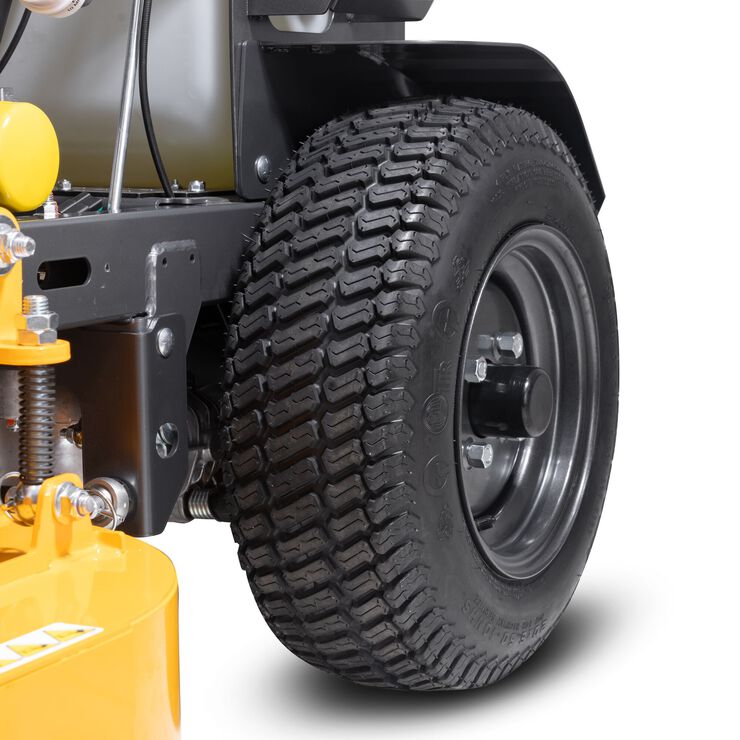

- Rear Tires 20"x 6.5"-10"
- Front Tires 11" x 6.0"-5"
Additional Specifications
- Hour Meter Crew Boss
- Model Number 47RS7WN4A10
Warranty
- Commercial Warranty 4-year / 800-hour
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower *As required by Kohler, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
